Ammonia (NH3) vs Ammonium (NH4+): Key Differences & Water Quality Monitoring Guide
Understanding ammonia vs ammonium is essential for accurate water quality monitoring in aquaculture, wastewater treatment, and environmental management. The difference between ammonia and ammonium determines toxicity, treatment strategy, and regulatory compliance. This guide explains the chemistry, toxicity, measurement methods, and practical implications of the ammonia vs ammonium equilibrium in water.
Key Takeaways
- Ammonia (NH₃) and ammonium (NH₄⁺) are two forms of the same nitrogen compound in water — they are not the same thing.
- NH₃ is the un-ionized, toxic form; NH₄⁺ is the ionized, far less toxic form. NH₃ is approximately 100 times more toxic to aquatic life.
- The ratio of NH₃ to NH₄⁺ depends primarily on pH and temperature — higher pH and higher temperature shift the equilibrium toward toxic NH₃.
- In aquaculture, even 0.02 mg/L of free ammonia (NH₃) can be lethal to sensitive fish species over extended exposure.
- Most “ammonia sensors” measure total ammonia nitrogen (TAN = NH₃ + NH₄⁺). To calculate free ammonia (NH₃), you must also know pH and temperature.
Table of Contents
- The Short Answer: Are Ammonia and Ammonium the Same?
- Chemical Structure & the NH₃ ⇌ NH₄⁺ Equilibrium
- How pH and Temperature Control the NH₃/NH₄⁺ Ratio
- Toxicity Comparison: NH₃ vs NH₄⁺ in Aquatic Environments
- Ammonia in Water: Sources and Environmental Behavior
- Ammonium in Water: The Ionic Form Explained
- Role in Wastewater Treatment: Nitrification & Denitrification
- Aquaculture Monitoring: Free Ammonia Calculation & Safe Levels
- How to Measure Ammonia and Ammonium in Water
- Sensor Selection: Choosing the Right Ammonia/Ammonium Sensor
- Quick Reference: NH₃ vs NH₄⁺ Comparison Table
- Frequently Asked Questions
1 The Short Answer: Are Ammonia and Ammonium the Same?
No, ammonia (NH₃) and ammonium (NH₄⁺) are not the same. When discussing ammonia vs ammonium, we are comparing two chemical forms of the same nitrogen compound that coexist in water in a reversible equilibrium (see the Wikipedia article on ammonia/ammonium equilibrium for background). The key difference is:
- Ammonia (NH₃) — also called free ammonia or un-ionized ammonia — is a dissolved gas. It has no electrical charge, can readily diffuse across cell membranes, and is highly toxic to aquatic organisms.
- Ammonium (NH₄⁺) — also called the ammonium ion or ionized ammonia — carries a positive charge (+1). It is much less toxic because the charge restricts its ability to cross biological membranes.
The difference between ammonia and ammonium is not just academic. In a wastewater treatment plant, the operator needs ammonium for nitrifying bacteria to function. In a fish farm, the operator needs to keep NH₃ below 0.02 mg/L. Both are measuring “ammonia,” but they care about different forms.
2 Chemical Structure & the NH₃ ⇌ NH₄⁺ Equilibrium

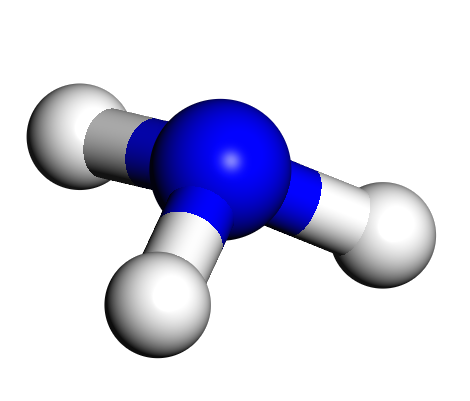

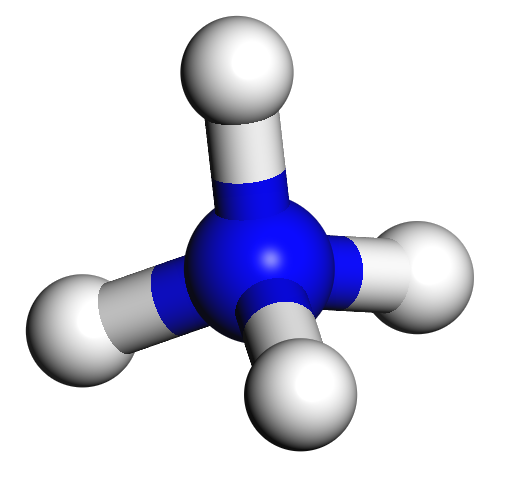

2.1 Molecular Structure
In the ammonia vs ammonium comparison, the molecular structure reveals why these two forms behave so differently in water:
| Property | Ammonia (NH₃) | Ammonium Ion (NH₄⁺) |
|---|---|---|
| Chemical formula | NH₃ | NH₄⁺ |
| Molecular weight | 17.03 g/mol | 18.04 g/mol |
| Electrical charge | Neutral (0) | Positive (+1) |
| Geometry | Trigonal pyramidal | Tetrahedral |
| State in water | Dissolved gas | Dissolved cation |
| Chemical nature | Weak base (proton acceptor) | Weak acid (proton donor) |
| pKa (25°C) | 9.25 (equilibrium constant) | |
2.2 The Equilibrium Reaction
In water, ammonia and ammonium exist in a dynamic acid-base equilibrium:
Or more commonly written as:
This is a reversible reaction. The direction depends on pH:
- At low pH (acidic conditions, pH < 7): H⁺ ions are abundant. The equilibrium shifts left, favoring NH₄⁺ (ammonium ion). Most nitrogen exists as ammonium.
- At high pH (alkaline conditions, pH > 10): H⁺ ions are scarce. The equilibrium shifts right, favoring NH₃ (free ammonia). Most nitrogen exists as toxic ammonia gas.
- At pH = pKa (9.25 at 25°C): Exactly 50% exists as NH₃ and 50% as NH₄⁺.
3 How pH and Temperature Control the NH₃/NH₄⁺ Ratio
3.1 pH Effect
The fraction of total ammonia existing as un-ionized NH₃ can be calculated from pH and the acid dissociation constant:
Where pKa varies with temperature (see below). Here is the NH₃ percentage at different pH values (25°C, freshwater):
| pH | % as NH₃ (toxic) | % as NH₄⁺ (less toxic) | Risk Level for Aquaculture |
|---|---|---|---|
| 6.5 | 0.18% | 99.82% | Negligible |
| 7.0 | 0.57% | 99.43% | Very low |
| 7.5 | 1.76% | 98.24% | Low |
| 8.0 | 5.38% | 94.62% | Moderate |
| 8.5 | 15.3% | 84.7% | High |
| 9.0 | 36.8% | 63.2% | Very high |
| 9.25 (pKa) | 50.0% | 50.0% | Critical |
| 9.5 | 63.2% | 36.8% | Extreme |
| 10.0 | 85.1% | 14.9% | Lethal |
3.2 Temperature Effect
The pKa of the ammonia-ammonium equilibrium decreases as temperature increases, meaning warmer water shifts more nitrogen toward toxic NH₃:
| Temperature (°C) | pKa | % NH₃ at pH 8.0 | % NH₃ at pH 9.0 |
|---|---|---|---|
| 0 | 10.08 | 0.8% | 7.6% |
| 10 | 9.79 | 1.6% | 14.1% |
| 15 | 9.65 | 2.2% | 18.7% |
| 20 | 9.50 | 3.1% | 24.7% |
| 25 | 9.25 | 5.4% | 36.8% |
| 30 | 9.09 | 7.6% | 46.4% |
| 35 | 8.95 | 10.2% | 53.6% |
3.3 Salinity Effect
In seawater and brackish water, the pKa is slightly lower than in freshwater. At 25°C and salinity of 35 ppt, pKa ≈ 9.0 (vs. 9.25 in freshwater). This means marine systems experience slightly less NH₃ toxicity at the same pH and temperature — but the difference is modest (roughly 15-20% lower NH₃ fraction).
4 Toxicity Comparison: NH₃ vs NH₄⁺ in Aquatic Environments
4.1 Why NH₃ Is ~100× More Toxic Than NH₄⁺
The dramatic difference in toxicity comes down to membrane permeability:
- NH₃ is a small, uncharged molecule that readily diffuses across gill membranes and cell walls. Once inside the organism, it disrupts the nervous system by interfering with ion regulation and neurotransmitter function.
- NH₄⁺ carries a positive charge that repels it from lipid bilayer membranes. It cannot easily enter cells through passive diffusion, so it causes far less internal damage at equivalent concentrations.
4.2 Toxicity Thresholds for Common Species
| Species | NH₃ Acute Lethal (LC50, 96h) | NH₃ Chronic Safe Level | NH₄⁺ Tolerated (ionized, approximate) |
|---|---|---|---|
| Rainbow trout | 0.2 – 0.8 mg/L | < 0.02 mg/L | > 50 mg/L |
| Tilapia | 1.0 – 2.0 mg/L | < 0.05 mg/L | > 100 mg/L |
| Channel catfish | 1.5 – 3.0 mg/L | < 0.05 mg/L | > 80 mg/L |
| Common carp | 0.5 – 1.5 mg/L | < 0.03 mg/L | > 60 mg/L |
| Pacific white shrimp | 0.5 – 1.5 mg/L | < 0.05 mg/L | > 40 mg/L |
| Daphnia magna (water flea) | 0.5 – 1.0 mg/L | < 0.02 mg/L | > 30 mg/L |
5 Ammonia in Water: Sources and Environmental Behavior
5.1 Natural and Anthropogenic Sources
Ammonia in water originates from both natural processes and human activities. In the ammonia vs ammonium discussion, it is important to note that the USGS identifies ammonia as one of the most monitored water quality parameters in the United States:
- Natural sources: Decomposition of organic matter (proteins, amino acids), nitrogen fixation, animal waste, atmospheric deposition
- Agricultural runoff: Fertilizers (urea, ammonium nitrate), livestock waste, aquaculture effluents
- Municipal wastewater: Human waste, cleaning products, food processing discharge
- Industrial discharges: Chemical manufacturing, petroleum refining, textile processing, pulp and paper mills
- Landfill leachate: Ammonia concentrations can reach 500 – 2,000 mg/L in landfill leachate
5.2 Environmental Fate
Once in water, ammonia nitrogen follows several pathways:
- Nitrification: NH₃ → NO₂⁻ → NO₃⁻ (biological oxidation by nitrifying bacteria)
- Plant/algal uptake: Both NH₃ and NH₄⁺ serve as nitrogen nutrients for aquatic plants and algae
- Volatilization: NH₃ can escape from water to the atmosphere, especially at high pH and with aeration
- Adsorption: NH₄⁺ can bind to suspended sediments and clay particles through cation exchange
5.3 Health and Environmental Concerns
While ammonia itself is not a direct human health concern at typical environmental levels (drinking water guidelines focus on nitrate), ecological impacts are severe:
- Fish kills: Acute NH₃ toxicity is a leading cause of fish mortality events in rivers and lakes
- Eutrophication: Ammonia/ammonium acts as a nitrogen nutrient, contributing to algal blooms and oxygen depletion
- Biodiversity loss: Chronic sub-lethal NH₃ exposure reduces reproductive success and growth rates in sensitive species
6 Ammonium in Water: The Ionic Form Explained
6.1 What Is the Ammonium Ion?
The ammonium ion (NH₄⁺) is a positively charged polyatomic cation formed when ammonia (NH₃) accepts a proton (H⁺). In the ammonia vs ammonium comparison, the ammonium ion is the dominant form in most natural waters. Its ammonium formula is NH₄⁺, with a molecular weight of 18.04 g/mol. The NH4 ion (alternate notation for NH₄⁺) behaves like other cations (e.g., K⁺, Na⁺) in water chemistry.
6.2 Behavior of Ammonium in Water
- Cation exchange: NH₄⁺ competes with K⁺, Na⁺, Ca²⁺, and Mg²⁺ for binding sites on clay particles and soil organic matter. This is important in sediment and groundwater chemistry.
- Nitrification substrate: Nitrosomonas bacteria oxidize NH₄⁺ to nitrite (NO₂⁻), which is then oxidized to nitrate (NO₃⁻) by Nitrobacter. This two-step process is the backbone of biological nitrogen removal in wastewater treatment.
- Plant nutrient: NH₄⁺ is directly bioavailable to plants and algae as a nitrogen source. Many fertilizers contain ammonium salts (e.g., ammonium sulfate, ammonium nitrate) for this reason.
- pH buffering: The NH₄⁺/NH₃ pair acts as a buffer system. NH₄⁺ can release H⁺ (acting as a weak acid), while NH₃ can accept H⁺ (acting as a weak base).
7 Role in Wastewater Treatment: Nitrification & Denitrification
7.1 Ammonia in Wastewater
Ammonia water treatment is one of the most critical processes in municipal and industrial wastewater plants (the EPA Nutrient Management program provides regulatory context). In the ammonia vs ammonium context, nitrifying bacteria specifically consume NH₄⁺, not NH₃. Typical influent total ammonia nitrogen (TAN) ranges from 20 to 60 mg/L for municipal wastewater and can exceed 100-500 mg/L for industrial streams (e.g., food processing, landfill leachate).
7.2 Biological Nitrification (NH₃ → NO₃⁻)
Nitrification is a two-step aerobic process carried out by autotrophic bacteria:
| Step | Reaction | Bacteria | Key Conditions |
|---|---|---|---|
| Step 1: Ammonia oxidation | NH₄⁺ + 1.5 O₂ → NO₂⁻ + 2 H⁺ + H₂O | Nitrosomonas, Nitrosospira | DO > 2 mg/L, pH 7.5-8.5, temp 20-35°C |
| Step 2: Nitrite oxidation | NO₂⁻ + 0.5 O₂ → NO₃⁻ | Nitrobacter, Nitrospira | DO > 2 mg/L, pH 7.0-8.0, temp 20-30°C |
7.3 Denitrification (NO₃⁻ → N₂)
After nitrification converts ammonia to nitrate, denitrification under anoxic conditions converts nitrate to nitrogen gas:
This requires an organic carbon source (e.g., methanol, acetate) and anoxic conditions (DO < 0.5 mg/L).
7.4 Why Distinguishing NH₃ from NH₄⁺ Matters in WWTPs
- Nitrification inhibition: Free ammonia (NH₃) concentrations above 10-150 mg/L can inhibit nitrifying bacteria. The operator needs to know the NH₃ fraction, not just TAN.
- Discharge permit compliance: Most permits specify limits on total ammonia nitrogen (TAN) or un-ionized ammonia (NH₃), depending on the jurisdiction.
- pH control: Nitrification consumes alkalinity and produces H⁺. Operators must monitor pH to ensure the equilibrium favors NH₄⁺ (substrate for bacteria) over NH₃ (inhibitor).
- Aeration optimization: Complete nitrification requires 4.57 kg O₂ per kg NH₄⁺-N oxidized. Accurate ammonia monitoring enables energy-efficient aeration control.
8 Aquaculture Monitoring: Free Ammonia Calculation & Safe Levels
8.1 Why Aquaculture Is Especially Vulnerable
In intensive aquaculture systems (recirculating aquaculture systems, ponds, raceways), ammonia accumulates from:
- Fish excretion (through gills and urine) — the primary source
- Uneaten feed decomposition
- Organic matter mineralization in sediments
Fish excrete ammonia directly as NH₃ through their gills. When ambient water NH₃ concentration exceeds internal blood NH₃, the excretion gradient reverses, and ammonia accumulates in the fish’s blood — causing toxicity.
8.2 How to Calculate Free Ammonia (NH₃) from TAN
Most ammonia test kits and sensors measure total ammonia nitrogen (TAN). To find the toxic fraction:
Where f(NH₃) depends on pH, temperature, and (slightly) salinity:
pKa calculation (freshwater):
Where T = temperature in Kelvin (K = °C + 273.15).
pKa = 0.09018 + (2729.92 / 301.15) = 9.15
f(NH₃) = 1 / [1 + 10(9.15 − 8.5)] = 1 / [1 + 100.65] = 1 / 5.47 = 0.183 (18.3%)
NH₃ = 2.0 × 0.183 = 0.37 mg/L
Verdict: FATAL — exceeds acute LC50 for tilapia within 24-48 hours at this level.
8.3 Safe Operating Ranges
| System Type | NH₃ Target (mg/L) | TAN at pH 7.5 Equivalent | Action if Exceeded |
|---|---|---|---|
| Cold-water RAS (trout) | < 0.0125 | < 0.71 | Increase water exchange, check biofilter |
| Warm-water RAS (tilapia) | < 0.025 | < 1.42 | Reduce feeding, increase aeration |
| Shrimp pond | < 0.05 | < 2.84 | Partial water exchange, add zeolite |
| Tilapia pond | < 0.05 | < 2.84 | Reduce feeding, add probiotics |
| Catfish pond | < 0.05 | < 2.84 | Water exchange, check DO |
9 How to Measure Ammonia and Ammonium in Water
9.1 Overview of Methods
When measuring ammonia vs ammonium in water, the choice of method depends on the application, required sensitivity, and whether you need to distinguish between the two forms:
| Method | What It Measures | Detection Range | Best For | Limitations |
|---|---|---|---|---|
| Ion-Selective Electrode (ISE) | NH₃ (gas-sensing) or NH₄⁺ (ISE) | 0.01 – 14,000 mg/L | Online monitoring, WWTPs | pH/temperature dependent, K⁺ interference for NH₄⁺ ISE |
| Nessler / Salicylate Colorimetric | TAN (total ammonia) | 0.01 – 50 mg/L | Lab analysis, field kits | Reagent handling, color interference from turbidity |
| Optical (Fluorescence-based) | NH₃ or NH₄⁺ (reagent-based) | 0.001 – 100 mg/L | Low-level detection, research | Higher cost, limited field deployment |
| UV Absorption (Online Analyzer) | NH₄⁺ (with conversion) | 0.1 – 1,000 mg/L | 24/7 WWTP monitoring | Requires sample pre-treatment, calibration |
| Test Strips / Comparator Kits | TAN (approximate) | 0.25 – 6 mg/L | Quick field checks | Semi-quantitative only, subjective color matching |
9.2 Critical Note: TAN vs NH₃ Measurement
9.3 NH₃ Gas-Sensing Electrode vs NH₄⁺ Ion-Selective Electrode
- NH₃ gas-sensing electrode: Measures free ammonia (NH₃) by detecting the ammonia gas that diffuses through a hydrophobic membrane after the sample is raised to high pH (>11). Gives a direct NH₃ reading. Most reliable for toxicity assessment.
- NH₄⁺ ISE: Measures ammonium ion (NH₄⁺) directly. Must correct for potassium (K⁺) interference, which is significant in many environmental samples. Measures NH₄⁺, not total ammonia, so NH₃ must be calculated from pH.
10 Sensor Selection: Choosing the Right Ammonia/Ammonium Sensor
10.1 Decision Matrix by Application
| Application | Key Concern | Recommended Sensor Type | Why |
|---|---|---|---|
| Fish farm (RAS) | NH₃ toxicity to fish | NH₃ gas-sensing electrode + pH + temperature | Direct NH₃ measurement; no conversion needed |
| WWTP aeration control | NH₄⁺ for nitrification | NH₄⁺ ISE or UV online analyzer | Measures substrate for nitrifiers; real-time aeration control |
| WWTP effluent compliance | TAN discharge limit | NH₄⁺ ISE + pH probe | Calculate TAN and NH₃; meet regulatory requirements |
| Surface water monitoring | Low-level detection | Optical fluorescence or high-sensitivity ISE | Sub-ppm detection needed for environmental assessment |
| Industrial discharge | High-range NH₄⁺ | NH₄⁺ ISE (high-range membrane) | Handles 100-1,000 mg/L without dilution |
| Aquaculture pond | Routine TAN checks | Colorimetric test kit or portable ISE meter | Cost-effective; measure pH simultaneously |
10.2 Googolwater Ammonia Monitoring Solutions
Googolwater offers industrial-grade ammonia and ammonium sensors for continuous water quality monitoring:
- Ion-Selective Electrode (ISE) Ammonium Sensor: Direct NH₄⁺ measurement, 0.01–1,000 mg/L range, minimal maintenance. Ideal for WWTP and environmental monitoring.
- Multi-parameter Water Quality Sonde: Simultaneously measures NH₄⁺, pH, temperature, DO, conductivity. Automatically calculates free NH₃ for aquaculture and surface water applications.
- Optical Ammonia Analyzer: Reagent-free optical detection for ultra-low NH₃ measurement (0.001–10 mg/L) in research and sensitive environmental applications.
Contact our technical team for a personalized sensor recommendation based on your water type, measurement range, and monitoring objectives.
11 Quick Reference: NH₃ vs NH₄⁺ Comparison Table
This summary table provides a quick reference for the ammonia vs ammonium comparison across all key parameters:
| Aspect | Ammonia (NH₃) | Ammonium (NH₄⁺) |
|---|---|---|
| Common name | Free ammonia, un-ionized ammonia | Ionized ammonia, ammonium ion |
| Charge | Neutral (0) | Positive (+1) |
| Form in water | Dissolved gas | Dissolved cation |
| Toxicity to fish | High (LC50 ~0.2–3 mg/L) | Low (LC50 >50 mg/L) |
| Membrane permeability | Readily crosses cell membranes | Cannot easily cross membranes |
| Dominant at pH | pH > 9.25 | pH < 9.25 |
| % at pH 7.0 (25°C) | ~0.6% of TAN | ~99.4% of TAN |
| % at pH 9.0 (25°C) | ~37% of TAN | ~63% of TAN |
| Odor | Pungent, characteristic | Odorless (as dissolved ion) |
| Volatility | Can volatilize from water | Non-volatile |
| Role in wastewater | Inhibits nitrifiers at high conc. | Substrate for nitrification |
| Measurement | NH₃ gas-sensing electrode | NH₄⁺ ISE, colorimetric, UV |
