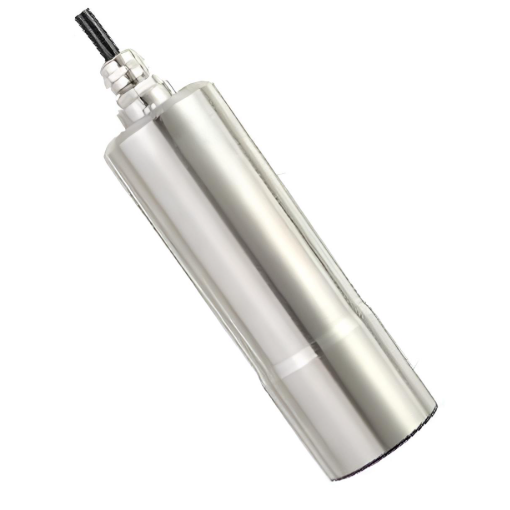

Digital Ammonia Nitrogen Sensor

Ammonia Nitrogen Sensor — ISE Technology for Reagent-Free Water Monitoring

The Digital Ammonia Nitrogen Water Sensor from Googolwater uses ion-selective electrode (ISE) technology to directly measure ammonium ions (NH₄⁺) in water — without chemical reagents. By compensating for pH and temperature in real time, the sensor calculates free ammonia (NH₃) concentration, delivering accurate, continuous data for wastewater treatment, aquaculture, and surface water monitoring.

According to the US EPA's aquatic life criteria for ammonia, free ammonia becomes toxic to aquatic organisms at concentrations as low as 0.5 mg/L (acute) and 0.05 mg/L (chronic). Continuous monitoring with a reliable ammonia nitrogen sensor is critical for regulatory compliance and environmental protection.

Key Specifications

How ISE Technology Works

An ion-selective electrode ammonia sensor operates through a PVC membrane that selectively binds ammonium ions. When NH₄⁺ ions contact the membrane, a potential difference is generated proportional to the ion concentration — this is the Nernst equation in action. The built-in pH electrode and temperature sensor compensate readings in real time, converting NH₄⁺ concentration to free ammonia (NH₃) based on the known pH-dependent equilibrium:

NH₄⁺ ⇌ NH₃ + H⁺   (pKₐ ≈ 9.25 at 25°C)

At pH 7, over 99% of total ammonia nitrogen exists as NH₄⁺. As pH rises toward 9–10, the equilibrium shifts toward toxic NH₃. This is why simultaneous pH measurement is essential for any ammonia sensor for water — without it, you're only measuring total ammonia nitrogen, not the biologically relevant free ammonia fraction. For a deeper explanation of this chemistry, refer to our guide: Ammonia vs Ammonium: Key Differences Explained.

Application Scenarios

Selecting the Right Ammonia Sensor

When evaluating an ammonia probe for wastewater or surface water, consider these factors:

• Measurement principle: ISE sensors directly measure NH₄⁺ without reagents — ideal for continuous online monitoring at a fraction of the cost of colorimetric analyzers. The USGS notes that excessive nitrogen in water is the single largest water quality concern in the United States.
• Detection range and resolution: A water ammonia sensor should cover your expected concentration range. For low-level monitoring (aquaculture), look for ≤0.01 mg/L resolution; for wastewater, 0.1 mg/L resolution is adequate.
• IS interoperability: Ensure the sensor outputs RS485 Modbus for integration with SCADA, PLC, or your existing multichannel data logger. Digital sensors simplify calibration and troubleshooting.
• Anti-interference design: ISE sensors can be affected by potassium ions (K⁺) which have similar ionic radius to NH₄⁺. Choose a sensor with a potassium interference rejection ratio >100:1 for reliable readings in complex water matrices.

Maintenance & Membrane Replacement

Unlike colorimetric methods, ISE-based ammonia sensors require no chemical reagents — significantly reducing operational costs. However, ISE membranes degrade over time. A well-maintained ISE membrane typically lasts 6–12 months in continuous operation.

Maintenance checklist:

• Weekly: Visual inspection of sensor body for fouling or bio-growth
• Monthly: Single-point calibration check with 10 mg/L NH₄⁺ standard
• Quarterly: Two-point calibration (0 mg/L + 100 mg/L); membrane condition assessment
• Annually: Replace ISE membrane cartridge and O-rings
