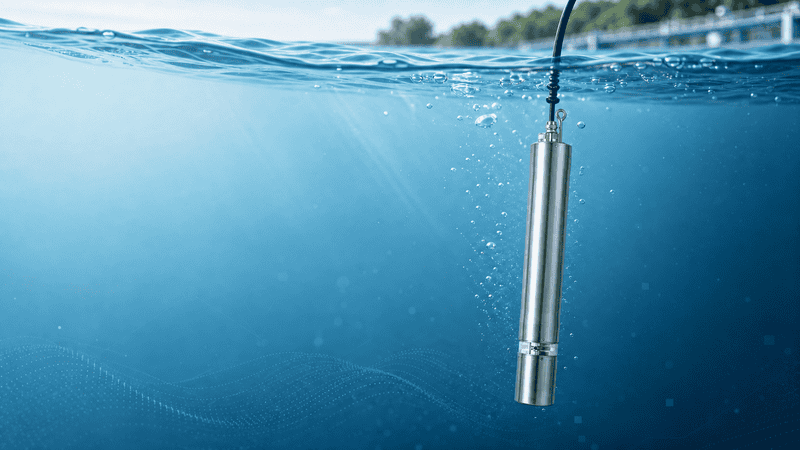

BOD Sensor Monitoring Guide
July 30, 2026
Dissolved Oxygen Sensor Guide
July 31, 2026
COD Sensor Monitoring Guide
1. What Is Chemical Oxygen Demand (COD)?
In simple terms, Chemical Oxygen Demand (COD) is the amount of oxygen needed to break down all organic matter — both biodegradable and non-biodegradable — in a water sample. It is measured in milligrams per liter (mg/L) and gives a complete picture of the organic pollution load.
By contrast, Biochemical Oxygen Demand (BOD) only measures biodegradable organics over a 5-day lab test. COD, on the other hand, captures the total oxygen demand within about 2 hours using strong chemical oxidants (usually potassium dichromate in sulfuric acid). As a result, COD is the better choice for rapid process control decisions.
2. Why COD Monitoring Matters
First and foremost, COD monitoring is not optional — it is a regulatory requirement. Under the US EPA NPDES, the EU Water Framework Directive, and China’s GB 8978 standard, COD is a mandatory discharge parameter for nearly all wastewater treatment facilities and industrial dischargers.
In fact, beyond compliance, real-time COD measurement delivers three operational benefits:
- Process optimization: Continuous COD data lets you adjust aeration in real time. Plants that use real-time COD-guided aeration usually reduce energy consumption by 15-25%.
- Shock load detection: Meanwhile, industrial dischargers can detect toxic or high-strength influent within seconds, preventing biomass kills and permit violations.
- Cost reduction: Beyond that, reagent-free optical COD sensors cut the recurring cost of chemical reagents (dichromate, sulfuric acid, silver sulfate) and hazardous waste disposal associated with traditional lab methods. According to the Water Research Foundation, reagent-free online monitoring can save mid-sized WWTPs $15,000–40,000 per year in consumables alone.
3. COD Measurement Methods Compared
Broadly speaking, there are three main approaches to COD measurement. The right choice depends on your need for speed, accuracy, and operating budget.
| Method | Response Time | Reagents Required | Accuracy | Best Role |
|---|---|---|---|---|
| Lab Dichromate (ISO 15705) | 2.5–6 hours | K₂Cr₂O₇, H₂SO₄, Ag₂SO₄ — Cr(VI) hazardous waste | ±2% (Gold Standard) | Regulatory compliance reference |
| Electrochemical (Online) | 5–15 minutes | Low / electrolyte only | ±5–10% | Selected process streams; requires frequent calibration |
| UV254 Optical (SAC254) | < 10 seconds | None (reagent-free) | ±5% (with site calibration) | Continuous process control; aeration optimization |
3.1 How Optical COD Sensors Work
An optical COD sensor uses ultraviolet (UV) light absorption to estimate organic carbon levels. Specifically, dissolved organic matter — especially aromatic compounds with linked double bonds — absorbs strongly at 254 nm (UV₂₅₄). By measuring how much light is absorbed as it passes through a water sample, the sensor calculates an absorption coefficient (SAC₂₅₄) that matches laboratory COD values.
Furthermore, the key technical advantage is dual-wavelength correction. A reference measurement at 550 nm (visible light) cancels out turbidity noise caused by suspended solids — a critical feature for raw wastewater applications where turbidity can exceed 100 NTU.
4. Choosing the Right COD Sensor for Your Application
Not all COD sensors are equal. To start, selecting the right one requires matching the sensor’s optical design, measurement range, and anti-fouling features to your specific water matrix.
4.1 COD Sensor Selection Matrix
| Application | Typical COD Range | Recommended Technology | Key Consideration |
|---|---|---|---|
| Municipal WWTP — Effluent | 20–120 mg/L | Dual-wavelength UV (254nm + 550nm) | Low-range accuracy; turbidity correction |
| Municipal WWTP — Influent | 200–800 mg/L | Multi-wavelength UV (235/254/275/550nm) | High-range optics; robust self-cleaning |
| Industrial — Food & Beverage | 500–5,000 mg/L | Multi or Full-spectrum UV-Vis | Dilution may be needed; check the match |
| Industrial — Chemical/Petrochemical | 200–2,000 mg/L | Full-spectrum UV-Vis (200–800nm) | Complex matrix; AI fingerprinting recommended |
| Surface Water / River Monitoring | 5–50 mg/L | Dual-wavelength UV | Low detection limit; low fouling environment |
| Drinking Water Source | 1–10 mg/L | Dual-wavelength UV (high sensitivity) | Precision at trace levels; TOC matching |
4.2 COD Sensor Selection Checklist
- Measurement range: Match optics to expected COD concentration. Oversized ranges sacrifice low-end resolution.
- Dual-wavelength correction: Essential for raw wastewater. Dual-wavelength designs (254nm + 550nm) fix suspended-solids noise.
- Self-cleaning mechanism: Automatic wipers or ultrasonic cleaners prevent biofouling and maintain calibration for 90-180 days without manual intervention.
- Material construction: 316L stainless steel or titanium housing with sapphire optical windows for aggressive industrial streams. IP68 rating for underwater use.
- Output protocol: RS485 Modbus RTU for direct PLC/SCADA integration. Verify register maps and addressing.
- Site calibration plan: Budget for multi-point calibration against parallel laboratory COD (dichromate method) samples to establish the site-specific matching curve.
5. Googolwater COD Sensor Solutions
Googolwater offers three optical COD monitoring solutions, each designed for a different operating envelope. Importantly, all three use UV absorption spectroscopy with built-in turbidity correction and automatic self-cleaning — removing chemical reagents entirely.
Basic All-in-One Water Sensor
Dual-wavelength (254nm + 550nm). Simultaneous COD, BOD, TOC, TSS, Turbidity, Temperature. ±2.5% accuracy. Ideal for municipal effluent and surface water.
View Product →Advanced Resolution All-in-One Sensor
4-band detection (235nm + 254nm + 275nm + 550nm) with AI cross-validation. COD, NO₃-N, TOC, TSS, Turbidity, Temperature. ±5% accuracy. Best for industrial effluent.
View Product →Premium Resolution All-in-One Sensor
Full-spectrum 200–800nm xenon lamp with AI fingerprinting. 11 parameters including COD, BOD, NO₂-N, O₃, Color. ±3% accuracy. Research-grade; complex multi-parameter monitoring.
View Product →5.1 Model Comparison
| Specification | Basic | Advanced | Premium |
|---|---|---|---|
| Spectrum | 254nm, 550nm | 235nm, 254nm, 275nm, 550nm | 200–800nm (Full) |
| COD Range | 0–500 mg/L | 0–500 mg/L | 0–500 mg/L |
| Parameters | COD, BOD, TOC, TSS, TUR, Temp | COD, NO₃-N, TOC, TSS, TUR, Temp | COD, BOD, NO₃-N, NO₂-N, O₃, Color, TOC, TSS, TUR, Temp |
| Accuracy | ±2.5% | ±5% | ±3% |
| Material | 316L SS, IP68 | 316L SS, IP68 | 316L SS, IP68 |
| Output | RS485 Modbus | RS485 Modbus, Bluetooth | RS485 Modbus, Bluetooth, WiFi |
| Self-Cleaning | Auto wiper (hourly) | Auto wiper (hourly) | Auto rotating brush |
6. COD Sensor Installation Best Practices
6.1 Mounting Location
- First, install in a well-mixed zone — avoid dead zones, eddies, or immediately downstream of chemical dosing points.
- Next, submerge the sensor at least 30 cm below the water surface to avoid floating debris and surface foam.
- Then, position at least 50 cm from tank walls or baffles to prevent reflection artifacts in the optical path.
- Finally, for pipeline installations, use a flow-through cell with controlled flow rate (0.5–3 m/s).
6.2 Calibration Protocol
- First, factory calibration: All Googolwater COD sensors ship with a factory calibration traceable to NIST-referenced potassium hydrogen phthalate (KHP) standards.
- Next, site matching: Collect 10–15 grab samples across your typical COD range. Run parallel lab dichromate COD tests. Build a site-specific linear regression to fine-tune the sensor’s internal algorithm.
- Finally, periodic verification: Perform a single-point check with a KHP standard every 30 days. Full re-calibration every 90 days or when the R² drops below 0.90.
6.3 Maintenance Schedule
| Interval | Task | Tool / Consumable |
|---|---|---|
| Weekly | Visual inspection; check for biofouling or debris on optical window | Soft cloth, distilled water |
| Monthly | Single-point KHP verification; inspect wiper blade condition | COD standard solution (e.g., 100 mg/L) |
| Quarterly | Full 3-point calibration; replace wiper blade if worn | KHP standards (low/mid/high); spare wiper kit |
| Annually | Factory re-certification or probe replacement if response degraded | Contact Googolwater support |
7. COD in Wastewater Treatment: Process Applications
7.1 Aeration Control
The single largest operating cost in an activated sludge plant is aeration energy — usually 50-60% of total plant electricity, based on EPA data from the US EPA Energy Efficiency for Water Utilities. In response, real-time COD monitoring at the inlet of the aeration basin allows operators to adjust blower output in line with the actual organic load, rather than running at a fixed design capacity.
In practice, the savings are clear: 15-25% reduction in aeration energy, with payback on the sensor investment within 6-12 months.
7.2 Industrial Discharge Compliance
Similarly, industrial plants discharging to municipal sewers face strict COD limits (usually 300-1,000 mg/L depending on local regulations). An online COD sensor at the final discharge point provides:
- Continuous compliance checks with alarm setpoints
- Meanwhile, automatic diversion to holding tanks when COD exceeds permit limits
- In addition, data logging for regulatory reporting and audit defense
7.3 Source Tracing in Combined Sewers
In addition, for combined sewer systems or industrial parks with multiple dischargers, COD sensors deployed at key junction points can trace pollution sources. The fast response time (seconds) of optical sensors makes it possible to match concentration spikes with specific industrial batch discharges for targeted enforcement.
8. COD vs. BOD vs. TOC: Which Parameter Should You Monitor?
The choice between COD, BOD, and TOC really depends on what you need the data for:
| Parameter | What It Measures | Time to Result | Primary Use |
|---|---|---|---|
| BOD (Biochemical Oxygen Demand) | Oxygen consumed by microorganisms degrading biodegradable organics | 5 days (BOD₅) | Regulatory compliance; most discharge permits require BOD₅ |
| COD (Chemical Oxygen Demand) | Oxygen required to chemically oxidize all organics (biodegradable + refractory) | ~2 hours (lab) / seconds (optical) | Rapid process control; industrial effluent monitoring |
| TOC (Total Organic Carbon) | Total carbon content in organic compounds | 5-10 minutes | Precision monitoring; pharmaceutical and electronics industry |
9. COD Sensor Frequently Asked Questions
9.1 COD Sensor Performance and Accuracy
Q1: Can an optical COD sensor replace laboratory COD testing?
For process control — yes. Optical COD sensors provide real-time trending data accurate enough to automate aeration, chemical dosing, and alarm systems. However, for regulatory compliance reporting — no. Most discharge permits require the standard dichromate method (ISO 15705 or SM 5220). Still, a well-calibrated optical sensor can reduce the frequency of lab testing by 80-90%, limiting lab tests to periodic verification only.
Q2: How does turbidity affect COD sensor accuracy?
Suspended solids scatter and absorb UV light, causing COD overestimation. To address this, Googolwater’s dual-wavelength sensors measure turbidity at the same time at 550 nm and apply a real-time correction algorithm that subtracts the turbidity contribution from the 254 nm absorption signal. As a result, this keeps accuracy within ±5% even at turbidity levels up to 100 NTU.
Q3: What is the typical lifespan of an optical COD sensor?
With proper maintenance (weekly visual checks, monthly single-point verification, quarterly 3-point calibration), a Googolwater optical COD sensor usually runs for 5-7 years. Also, the UV LED light source is rated for 50,000+ hours of continuous operation. Meanwhile, the self-cleaning wiper blade should be replaced every 6-12 months depending on fouling conditions.
9.2 COD Sensor Integration and Maintenance
Q4: Can COD sensors measure BOD as well?
Not directly, but multi-parameter optical sensors (like the Googolwater Premium Resolution All-in-One) output BOD as a calculated parameter derived from the COD measurement and a site-specific BOD/COD ratio. Therefore, this is enough for process trending but does not replace the standard BOD₅ test for regulatory compliance.
Q5: What communication protocols do COD sensors support?
All Googolwater COD sensors output via RS485 Modbus RTU — the industry standard for industrial automation. This allows direct integration with PLCs (Siemens, Allen-Bradley, Mitsubishi), SCADA systems (Wonderware, Ignition, WinCC), and IoT gateways. In addition, the Advanced model adds Bluetooth for wireless local access; meanwhile, the Premium model adds WiFi for cloud access.
Q6: How often does the self-cleaning wiper operate?
Default interval is every 60 minutes, fully customizable via Modbus register. For high-fouling environments (primary clarifier effluent, industrial waste with high grease content), however, the interval can be shortened to every 15-30 minutes. Each cleaning cycle takes about 5 seconds and consumes negligible power.
